Linear Magnetron

Patented Advantages

Angstrom Sciences’ linear magnetrons incorporate our fully-encapsulated patented profiled NdFeB rare earth magnets and turbulent water flow to provide unparalleled performance.

Standard Fittings

We use ISO NW standard fittings, as well as Conflat® metal seal flanges. All utilities are maintained at atmosphere and accessed through standard O-ring compression fittings for easy installation in any vacuum system.

As more industries discover the speed, controllability, and bottom-line benefits of magnetron sputtering, Angstrom Sciences is developing tools to maximize the output of these larger, faster manufacturing processes.

Broader Solutions

For those who have to coat extremely broad substrates or have to achieve extremely high throughput, linear magnetrons offer the perfect solution.

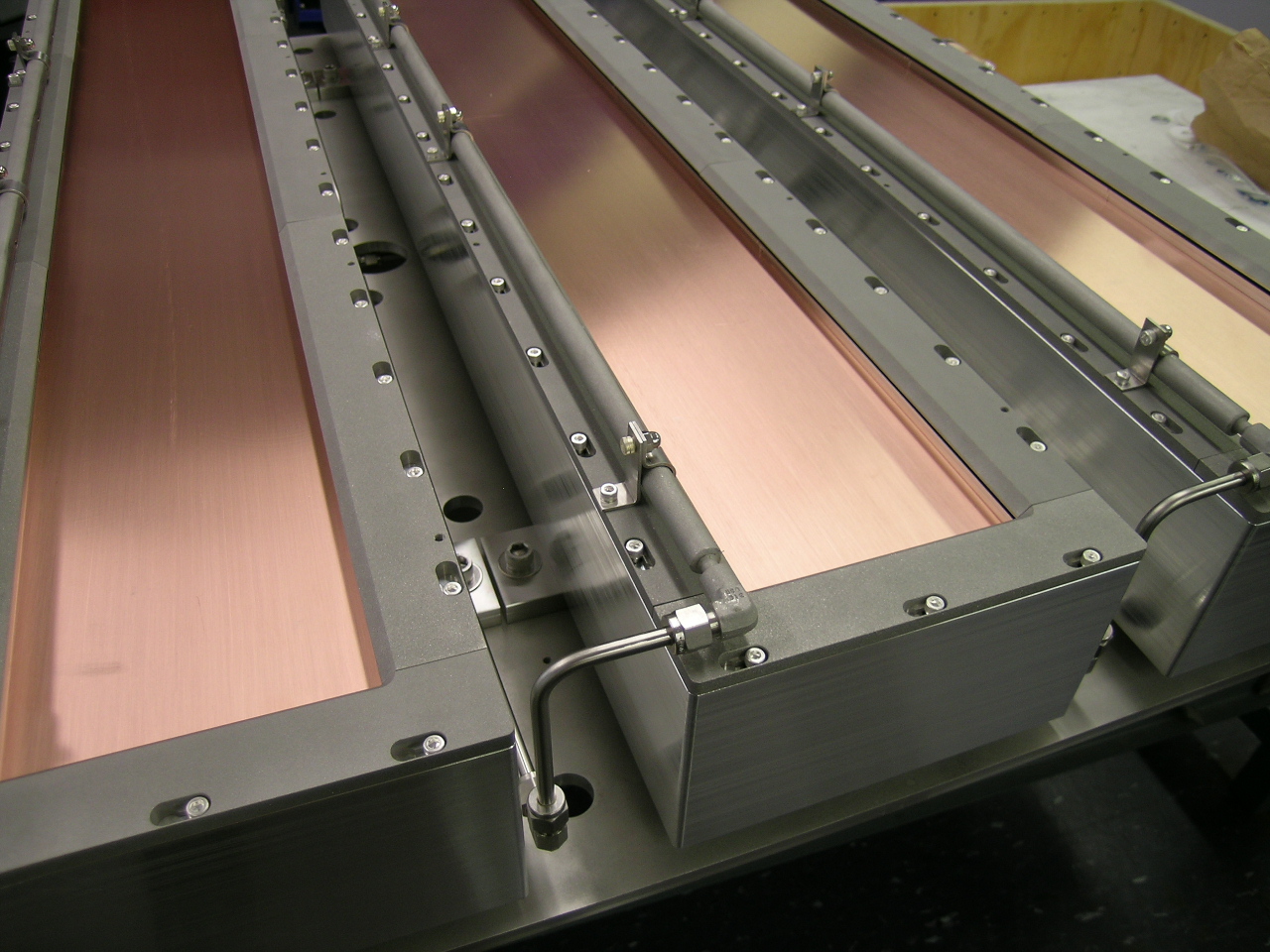

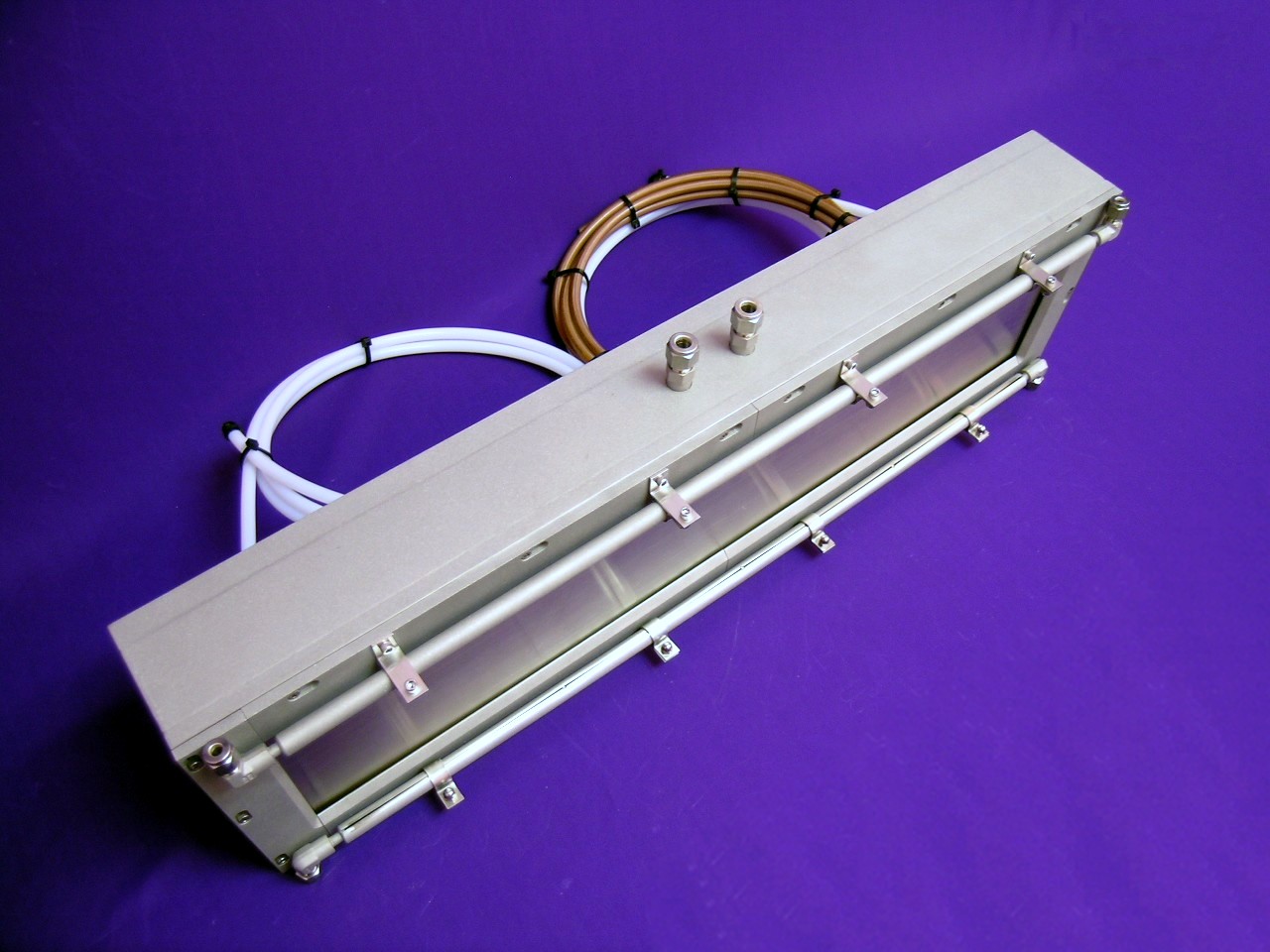

ONYX Linear Magnetron

Total Power Compatibility

Low-impedance heads provide RF, DC, mid-frequency DC, pulsed DC, and microwave power compatibility.

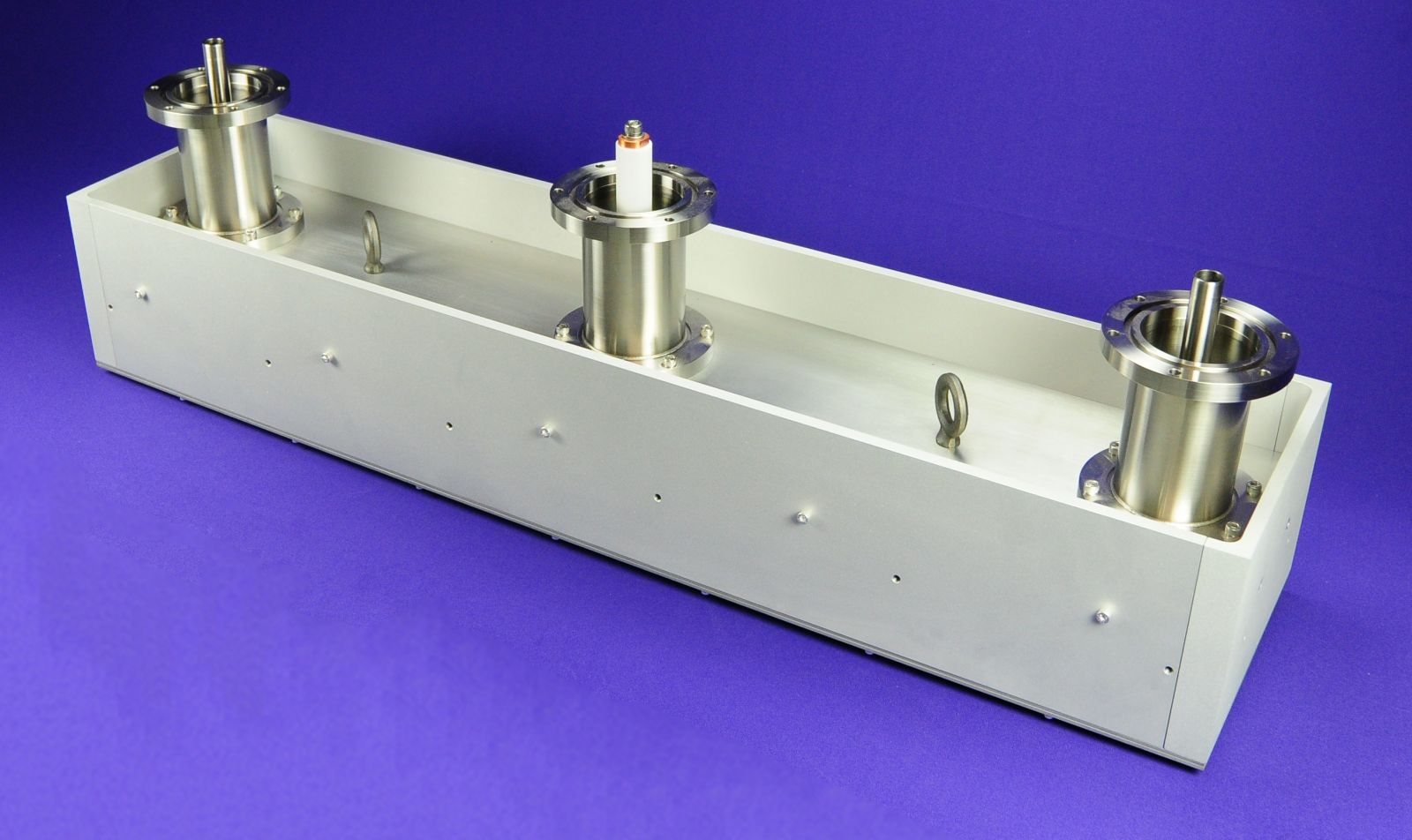

ONYX Linear Magnetron

Proven Performance

These magnetrons deliver the unparalleled performance that has made Angstrom Sciences the new standard of the industry.

Standard operation at extremely low pressure and exceptionally high power, provides you with the perfect balance of uniformity, utilization and rate in any application.

Going to any Length

Angstrom Sciences‘ linear cathodes are available in a full range of target widths from 1"/25mm to 16"/406mm and lengths up to 185"/4700mm. And, of course, we are fully-equipped to design and build custom magnetrons for any of your production needs.

Total Commitment

All Angstrom Sciences’ magnetrons are guaranteed against defects in workmanship and materials for two full years. Magnetrons are our core business, and we stand ready to ensure your satisfaction.

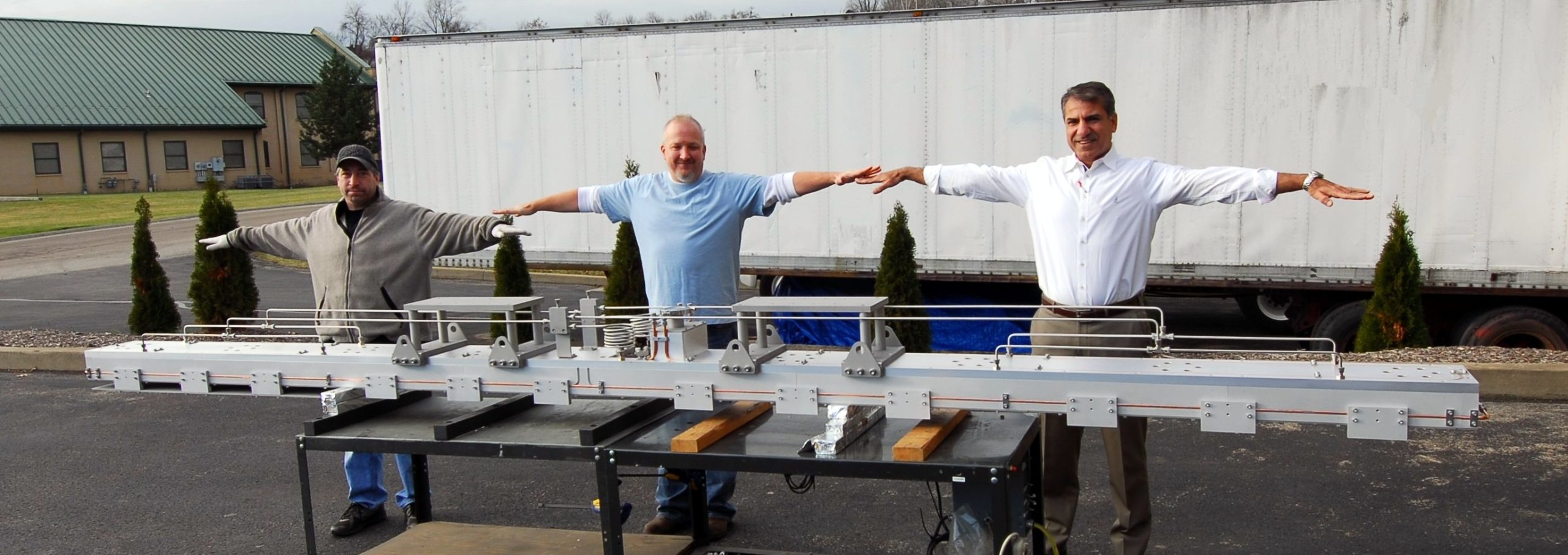

Linear Magnetron 5x185 Angstrom Sciences

Click Here, if you want to Configure your Magnetron.

For more information on Linear Magnetrons, call us at 412-469-8466 or contact us online.
